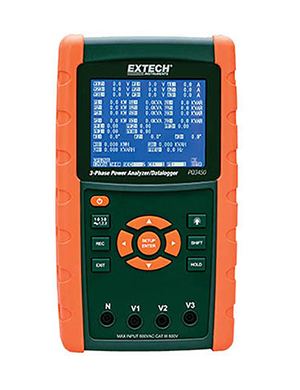

3-Phase Power Quality Analyzer [PQ3450]

The PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy-to-hold with a rugged over molded housing and features a built-in clock and calendar, 35 parameters and a CAT III 600V safety rating. Complete with a year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately. Datalogging Power Analyzer (up to 30,000 sets of measurements).

Features:

• Large dot-matrix sun-readable numerical backlit LCD with easy-to-use onscreen menu.
• Full system analysis with up to 35 parameters:
  V (phase-to-phase) V (phase-to-ground)
  A (phase-to-ground)
  KW / KVA / KVAR / PF (phase)
  KW / KVA / KVAR / PF (system)
  KWH / KVAH / KVARH / PFH (system)
  Phase angle
• Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately).
• Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems.
• Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format.
• Wide sampling rate range (2 seconds to 2 hours).
• Built-in Clock and Calendar.
• Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor and case. Clamp probes sold separately.
