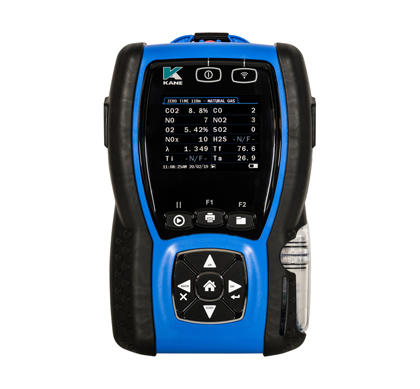

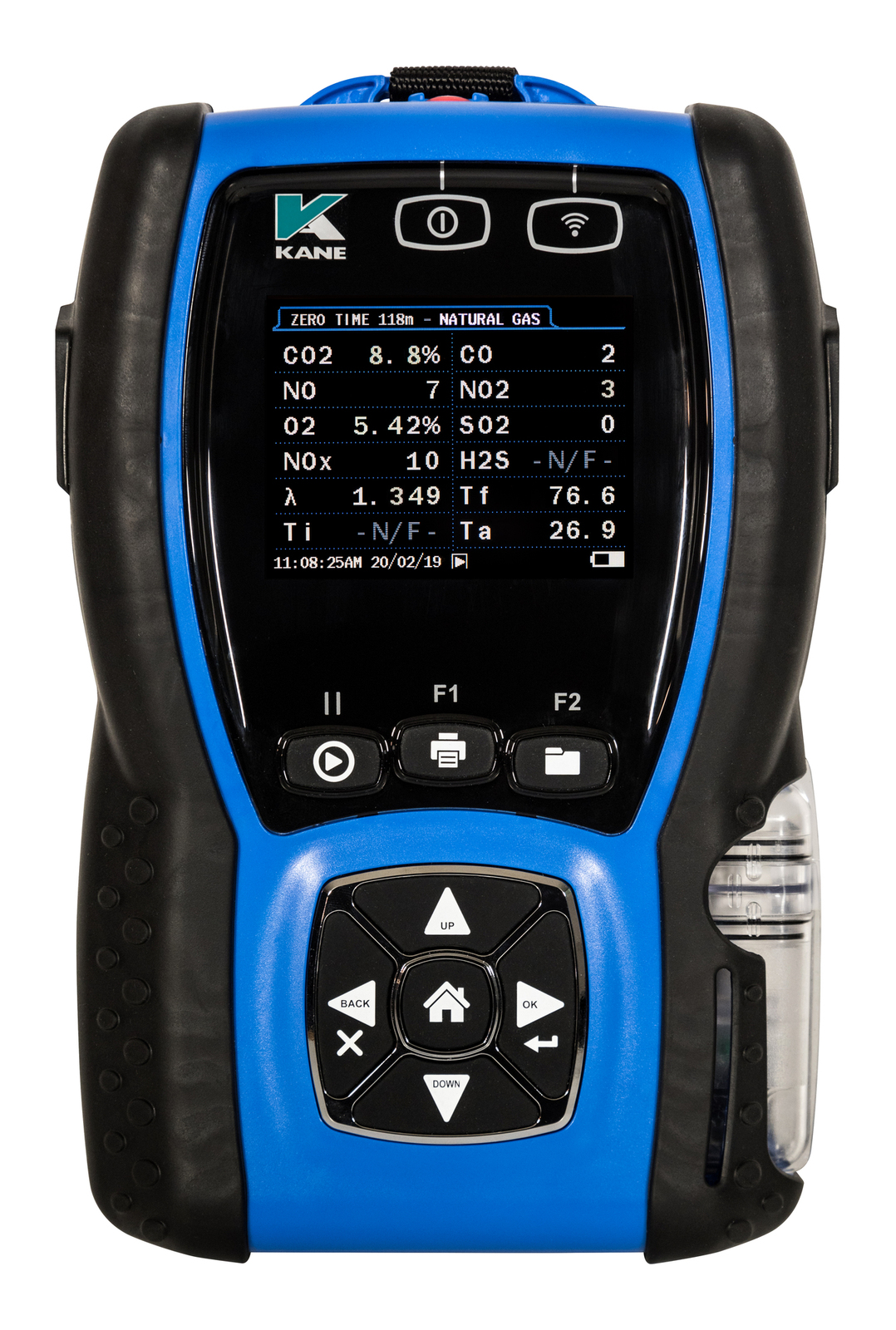

Kane 975 Industrial Flue Gas Analyser

The Kane 975 features the latest flue gas analyser technology with options for up to 7 gas measurements CO (0-10,000 ppm), CO2, O2, NO, NO2, SO2 & H2S. This product is ideal for larger installations and has built in over-range protection. The intuitive user keypad and buttons with large full colour graphic display make the unit easy to use.
Kane 975 Key Features

• Low energy wireless module
• Infra-red printer link with customised printer header
• Logs & stores up to 40,000 test results for easy transfer to PC
• Long life battery recharged in situ
• High suction double headed pump, ideal for high stack pressure in large chimneys
• Supplied with Teflon lined flue probe

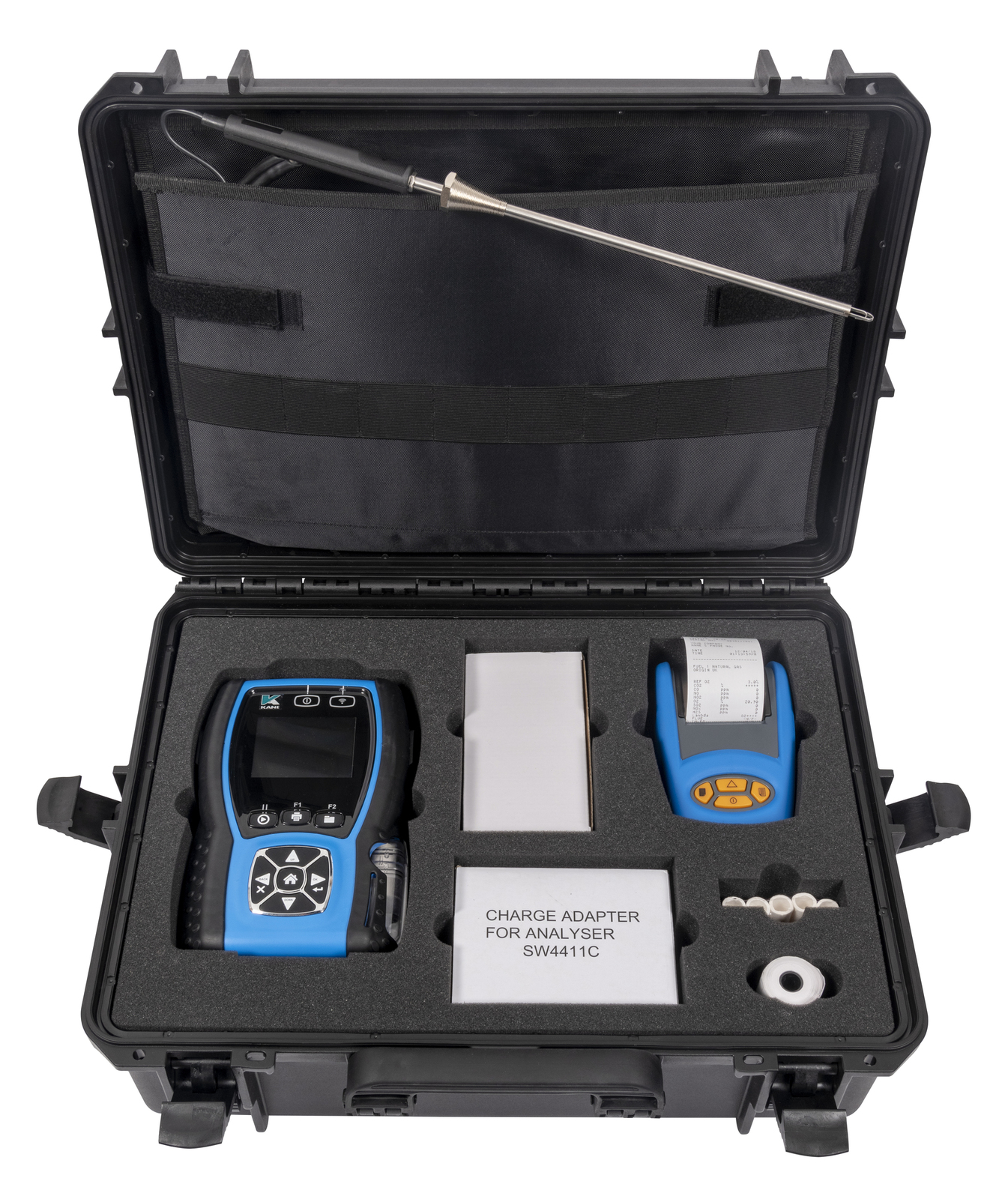

• Heavy duty waterproof case with custom foam insert

Measures

• O2 0-21%
• CO 0-10,000ppm (hydrogen compensated)
• Differential pressure
• Temperature – inlet / flue gas / differential / ambient

 Choose up to 5 additional sensors

• CO 0-10%
• CO2 0-20%
• NO 0-5,000ppm
• NO 2 0-1,000ppm
• SO 2 0-100ppm
• SO 2 0-5,000ppm
• H2S 0-200ppm

Calculates

• CO2 – 0-99%
• CO/CO2 ratio
• Excess air
• NOx (if NO sensor fitted)
• Combustion efficiency
